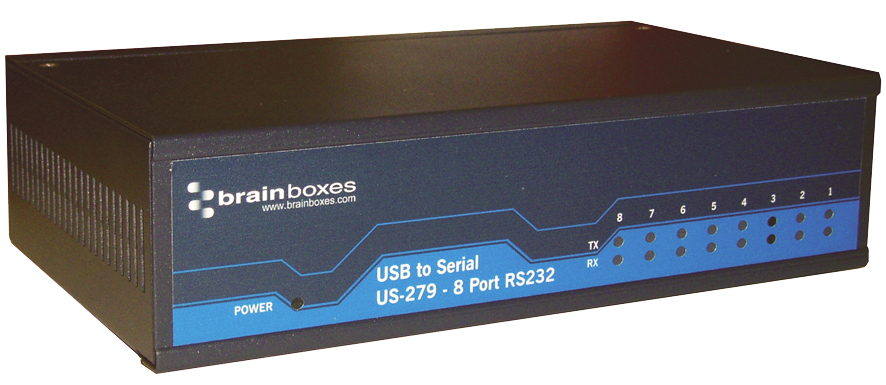

Brainboxes 8 Port RS232 USB to Serial Adapter
SKU
US-279
- 8 Port RS-232 USB to Serial Server
- Data rate from 300 to 921,600 baud
- High Retention USB Socket, IP30 Rated Case
- Drivers for all popular operating systems including Windows 8
- Screw Lock Power Supply (included)
| Host interface | Serial |
|---|---|
| SKU | US-279 |
| EAN | 0837324002133 |
| Manufacturer | Brainboxes |
| Availability | Out of Stock |
| PDF URLs |
View PDF |
8 port RS-232 USB to serial server
Data transfer rates up to 921,600 baud rates
High Retention USB Socket, IP30 Rated Case
Secure connection
Drivers for all popular operating systems
Including Windows XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8
USB to Serial server providing 8 RS232 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8 with additional drivers for both Mac OS X and Linux.
| Ports & interfaces | |
|---|---|
| Internal | No |
| Output interface | Serial |
| Serial interface type | RS-232 |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 8 |
| Host interface | USB Type-B |
| Host interface gender | Female |
| Technical details | |
| Plug and Play | Yes |
| Data transfer rate (max) | 0.48 Gbit/s |
| Compliance certificates | CE, UKCA, Federal Communications Commission (FCC) |
| Performance | |
| Data bits | 7, 8 |
| Baud rate | 921.6 Kbit/s |
| Plug and Play | Yes |
| Flow control support | Yes |
| Data transfer rate (max) | 0.48 Gbit/s |
| Product colour | Black |
| Harmonized System (HS) code | 84718 |
| Export Control Classification Number (ECCN) | 4A994 |
| Certificates | |
| Certification | Microsoft Certified Gold Partner, CE, WEEE, RoHS, TAA |
| Colour | |
| Product colour | Black |
| Design | |
| Internal | No |
| Product colour | Black |
| Certification | Microsoft Certified Gold Partner, CE, WEEE, RoHS, TAA |
| Features | |
|---|---|
| Data bits | 7, 8 |
| Baud rate | 921.6 Kbit/s |
| Plug and Play | Yes |
| Flow control support | Yes |
| Data transfer rate (max) | 0.48 Gbit/s |
| Parity bit | No, Odd, Even, Mark, Space |
| Flow Control type | RTS/CTS, DTR/DSR, XON/XOFF |
| Harmonized System (HS) code | 84718 |
| Export Control Classification Number (ECCN) | 4A994 |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
| Weight & dimensions | |
| Width | 215 mm |
| Depth | 123 mm |
| Height | 56 mm |
| Weight | 878 g |
| Package width | 300 mm |
| Package depth | 135 mm |
| Package height | 80 mm |
| Package weight | 1.2 kg |
| Packaging data | |
| Package width | 300 mm |
| Package depth | 135 mm |
| Package height | 80 mm |
| Package weight | 1.2 kg |
| Power supply included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84718 |
| Other features | |
| Connectivity technology | Wired |
| Power requirements | 600mA / 5V |
| Package dimensions (WxDxH) | 230 x 250 x 70 mm |
| Mac compatibility | No |
| Compatible operating systems | Windows XP, Server 2003, Vista, Server 2008, Windows 7 |
| Flow control support | Yes |
