Brainboxes Compact 1 Port RS232 High Retention USB 1MBaud
SKU
US-235
Login for pricing
Out Of Stock - Contact for availability
Ultra 1 Port RS232 USB to Serial Adapter, Black
- 1 Port RS-232 USB to Serial Adapter
- High Retention USB connector with 50cm USB cable
- Our smallest form factor USB to Serial
- Works where many other USB to Serial devices do not. Drivers for Windows 10, 8, 7, XP, Mac and Linux
- Industrial Specification IP-50 rated -40 °C to +80 °C / -40 °F to +176 °F
| SKU | US-235 |
|---|---|
| EAN | 0837324003499 |
| Manufacturer | Brainboxes |
| Availability | Out of Stock |
| PDF URLs |
View PDF |

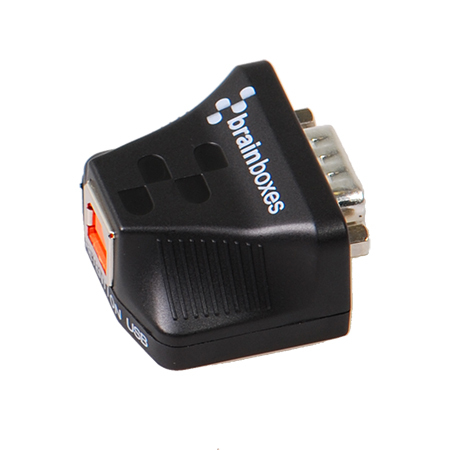

1 Port RS-232 USB to Serial Adapter
Includes large 512 byte Tx and Rx FIFOs and high data throughput

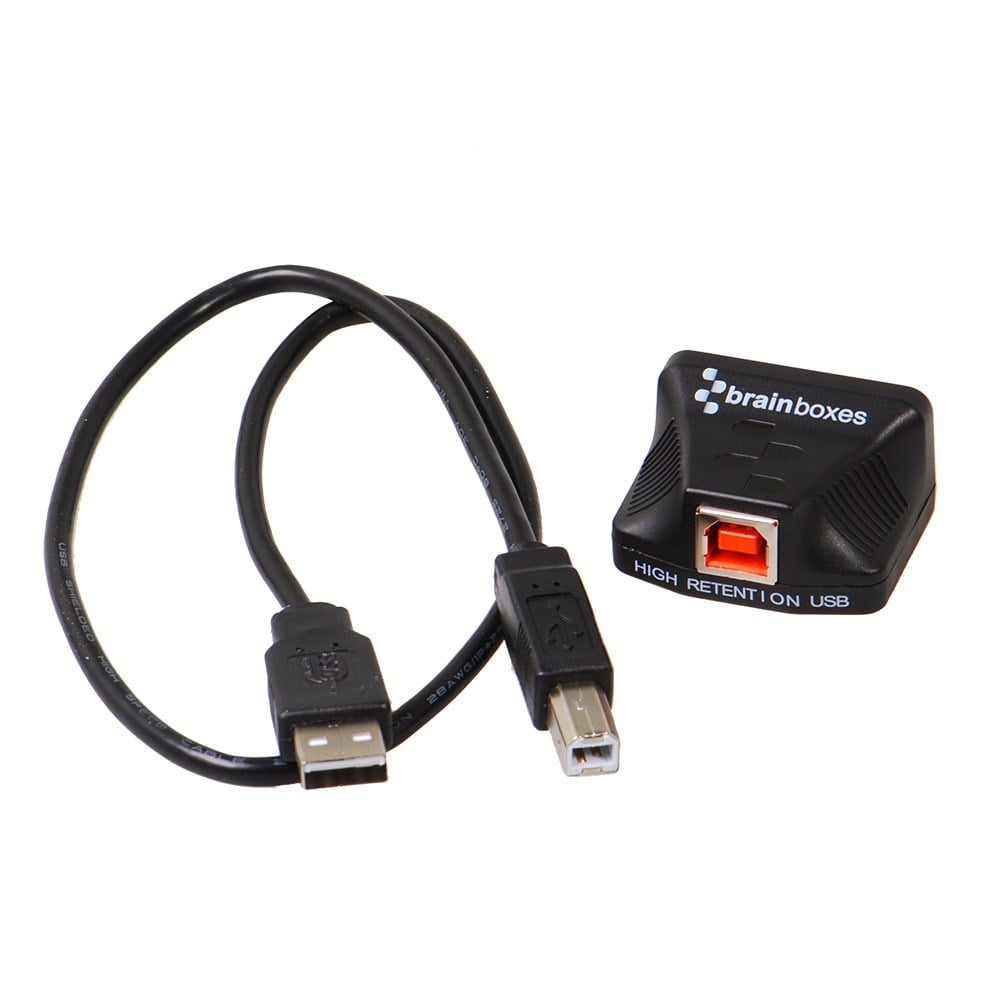

High retention USB connector
Includes 50m USB cable

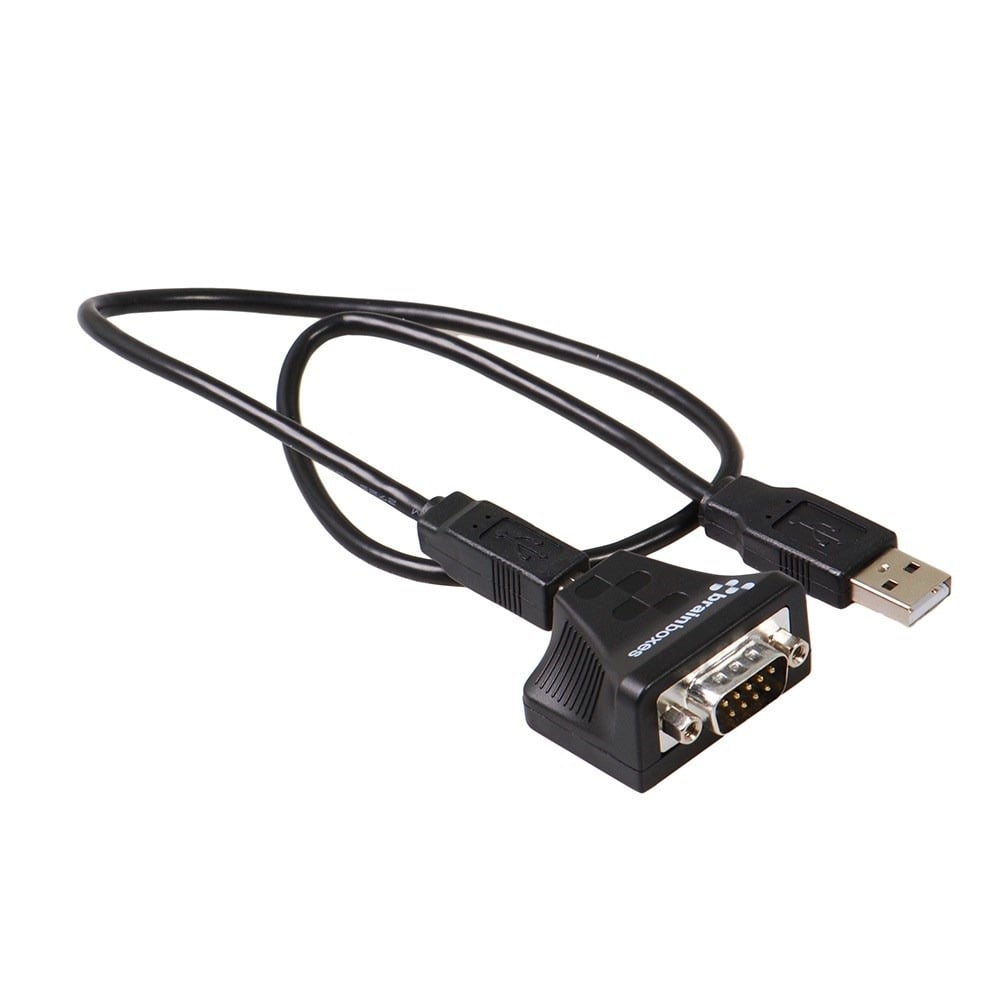

Drivers from all popular operating systems
Including Windows 10, 8, 7 and XP
Tough ultra small USB to serial adapter suitable for any environment. The closest you can get to an integrated RS232 serial COM port. High retention USB connector for an unbreakable connection.
Have confidence, this product will match whatever baud rate your equipment needs without data loss. Includes large 512 byte Tx and Rx FIFOs and high data throughput. Works across the full spectrum of baud rates up to 921,600 including standard and arbitrary values.
We provide our own software drivers - eliminating many common problems with USB to Serial - giving you have a reliable, stable, native com port solution.
Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux.
Have confidence, this product will match whatever baud rate your equipment needs without data loss. Includes large 512 byte Tx and Rx FIFOs and high data throughput. Works across the full spectrum of baud rates up to 921,600 including standard and arbitrary values.
We provide our own software drivers - eliminating many common problems with USB to Serial - giving you have a reliable, stable, native com port solution.
Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux.
| Ports & interfaces | |
|---|---|
| Connector 2 | USB B |
| Connector 1 | DB9 |
| Cable length | 0.5 m |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| USB version | 2.0 |
| Cables included | USB Type-A to USB Type-B |
| Performance | |
| Stop bits | 1, 2 |
| Data bits | 7, 8 |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 512 B |
| Compatible operating systems | Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Raspberry Pi Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux |
| Product colour | Black |
| Parity bit | Even, Mark, No, Odd, Space |
| Data transfer rate | 0.48 Gbit/s |
| Output current | 40 mA |
| Output voltage | 5 V |
| Power | |
| Output current | 40 mA |
| Output voltage | 5 V |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA |
| Weight & dimensions | |
| Width | 41 mm |
| Weight | 24 g |
| Height | 22 mm |
| Depth | 38 mm |
| Packaging content | |
|---|---|
| Cables included | USB Type-A to USB Type-B |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 160 mm |
| Package height | 45 mm |
| Package depth | 135 mm |
| Package weight | 155 g |
| Technical details | |
| Output current | 40 mA |
| Output voltage | 5 V |
| Product colour | Black |
| Cable length | 0.5 m |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA |
| Design | |
| Product colour | Black |
| Cable length | 0.5 m |
| System requirements | |
| Compatible operating systems | Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Raspberry Pi Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux |
| Logistics data | |
| Harmonized System (HS) code | 84718 |
| Export Control Classification Number (ECCN) | 4A994 |
