Brainboxes Ethernet 4 Port RS232
SKU
ES-701
- 4 Port RS-232 Ethernet to Serial Device Server
- Recommended for demanding flow control and latency applications such as CNC/DNC machine communications
- Serial Port Tunnelling allows serial cable replacement over any distance, no software required
- IP-30 rated steel enclosure
- Data rate from 110 to 1,000,000 baud (1 MegaBaud)
- Install Virtual Com ports, communicate over TCP/IP or use the Software APIs for Visual Basic, C# and morex
| Internal | No |
|---|---|
| Output interface | Serial |
| SKU | ES-701 |
| EAN | 5052181426068 |
| Manufacturer | Brainboxes |
| Availability | Out of Stock |
| PDF URLs |
View PDF |

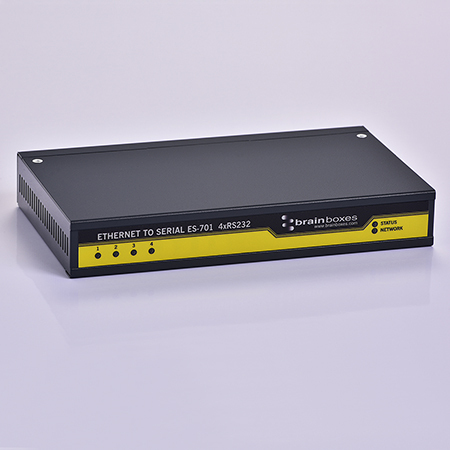

Data transfer rates up to 1,000,000 baud (1 MegaBaud)
Coupled with 1Mbit/s line drivers deliver uncompromising performance

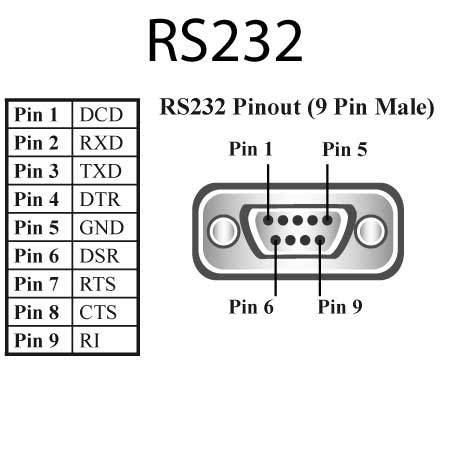

Access to 4 RS232 serial ports
Web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser

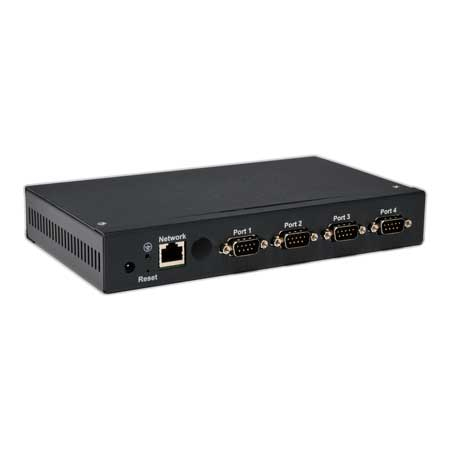

Serial port tunnelling
Allows serial cable replacement over any distance, no software required
Ethernet to Serial device server providing access to four RS232 serial port. Data transfer rates up to 1,000,000 baud rates (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values.Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
| Ports & interfaces | |
|---|---|
| Internal | No |
| Output interface | RS-232 |
| Serial interface type | DB9 |
| Serial ports quantity | 4 |
| Host interface | RJ-45 |
| Host interface gender | Female |
| Technical details | |
| FIFO (First In, First Out) | 2048 B |
| Data transfer rate (max) | 0.1 Gbit/s |
| Compliance certificates | RoHS |
| Performance | |
| FIFO (First In, First Out) | 2048 B |
| Flow control support | Yes |
| Data transfer rate (max) | 0.1 Gbit/s |
| Product colour | Black |
| Harmonized System (HS) code | 851762 |
| Export Control Classification Number (ECCN) | 5A991.b |
| Certificates | |
| Certification | EMC CE, WEEE, TAA, AEO C-TPAT |
| Colour | |
| Product colour | Black |
| Design | |
| Internal | No |
| Product colour | Black |
| Certification | EMC CE, WEEE, TAA, AEO C-TPAT |
| LED indicators | Status |
| Features | |
| FIFO (First In, First Out) | 2048 B |
| Flow control support | Yes |
| Data transfer rate (max) | 0.1 Gbit/s |
| Harmonized System (HS) code | 851762 |
| Export Control Classification Number (ECCN) | 5A991.b |
| Power | |
|---|---|
| Power consumption (typical) | 1.35 W |
| Power supply input voltage | 5 - 30 V |
| External power adapter | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
| Width | 135 mm |
| Depth | 300 mm |
| Height | 80 mm |
| Weight | 959 g |
| Package width | 240 mm |
| Package depth | 260 mm |
| Package height | 80 mm |
| Package weight | 1.05 kg |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 260 mm |
| Package height | 80 mm |
| Package weight | 1.05 kg |
| Quick installation guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 851762 |
| Other features | |
| Connectivity technology | Wired |
| Mac compatibility | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Flow control support | Yes |
| Packaging content | |
| Quick installation guide | Yes |
