Brainboxes Isolated High Retention USB 1 Port RS232
SKU
US-159
Login for pricing
Out Of Stock - Contact for availability
Ultra 1 Port RS232 Isolated USB to Serial Adapter
- 1 Port Isolated RS-232 USB to Serial Adapter
- Isolation: Avoid electrical damage to your expensive equipment
- High Retention USB connector with 50cm USB cable
- Works where many other USB to Serial devices do not
- Industrial Specification IP-50 rated -40 °C to +80 °C / -40 °F to +176 °F
| SKU | US-159 |
|---|---|
| EAN | 0837324003802 |
| Manufacturer | Brainboxes |
| Availability | Out of Stock |
| PDF URLs |
View PDF |

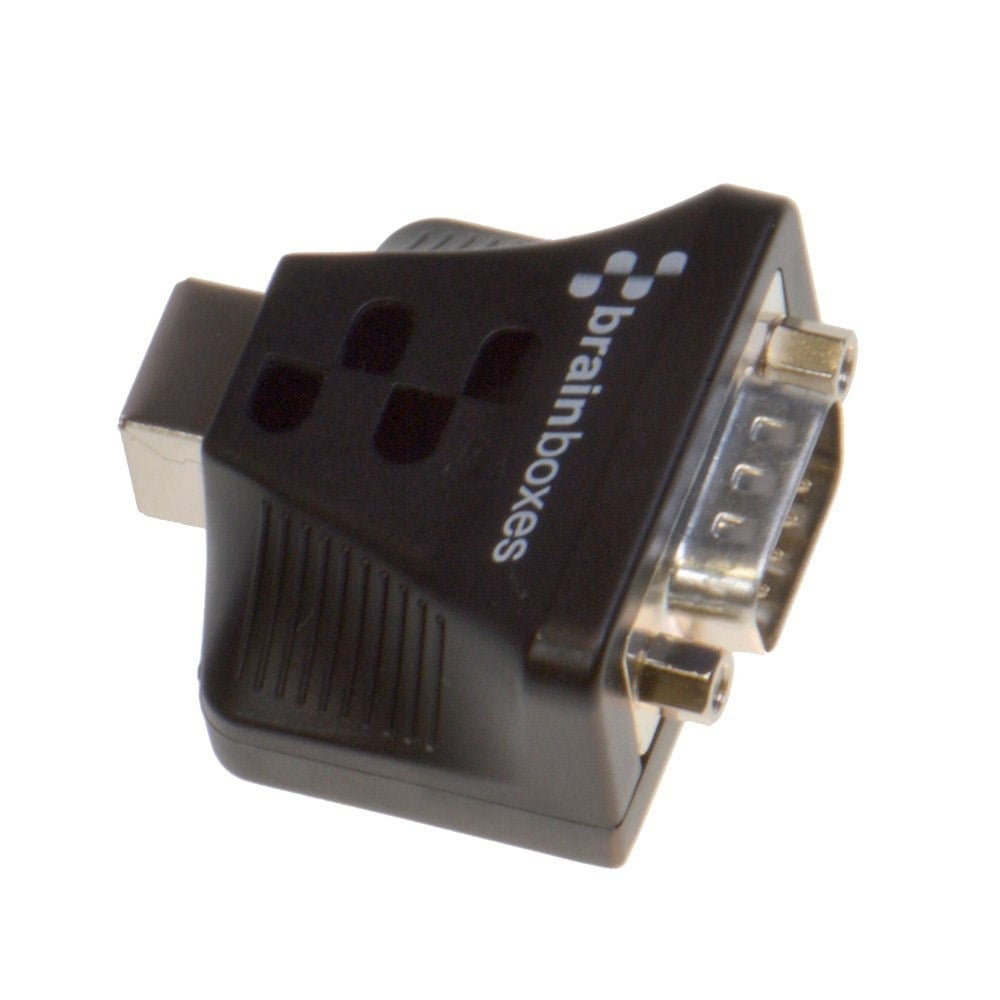

1 Port Isolated RS-232 USB to Serial Adapter
Avoid electrical damage to your expensive equipment with isolation

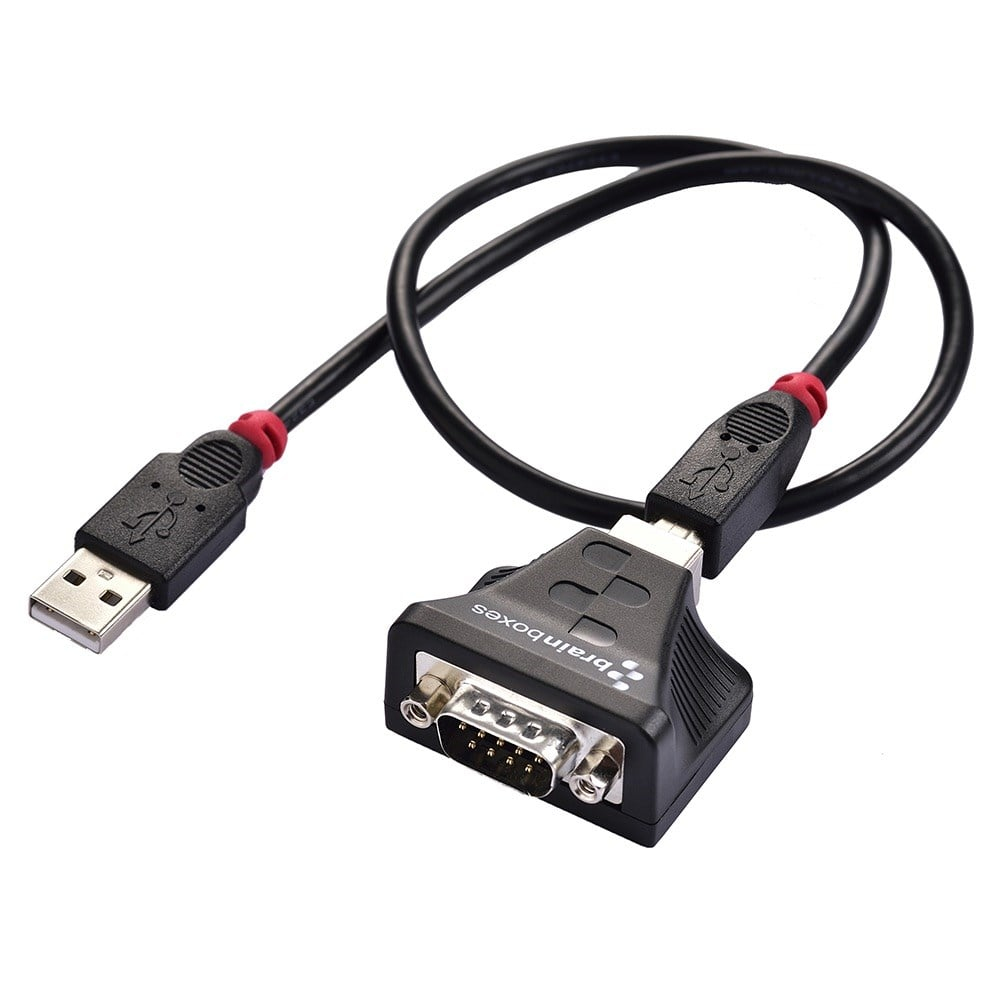

High retention USB connector
Includes 50m USB cable

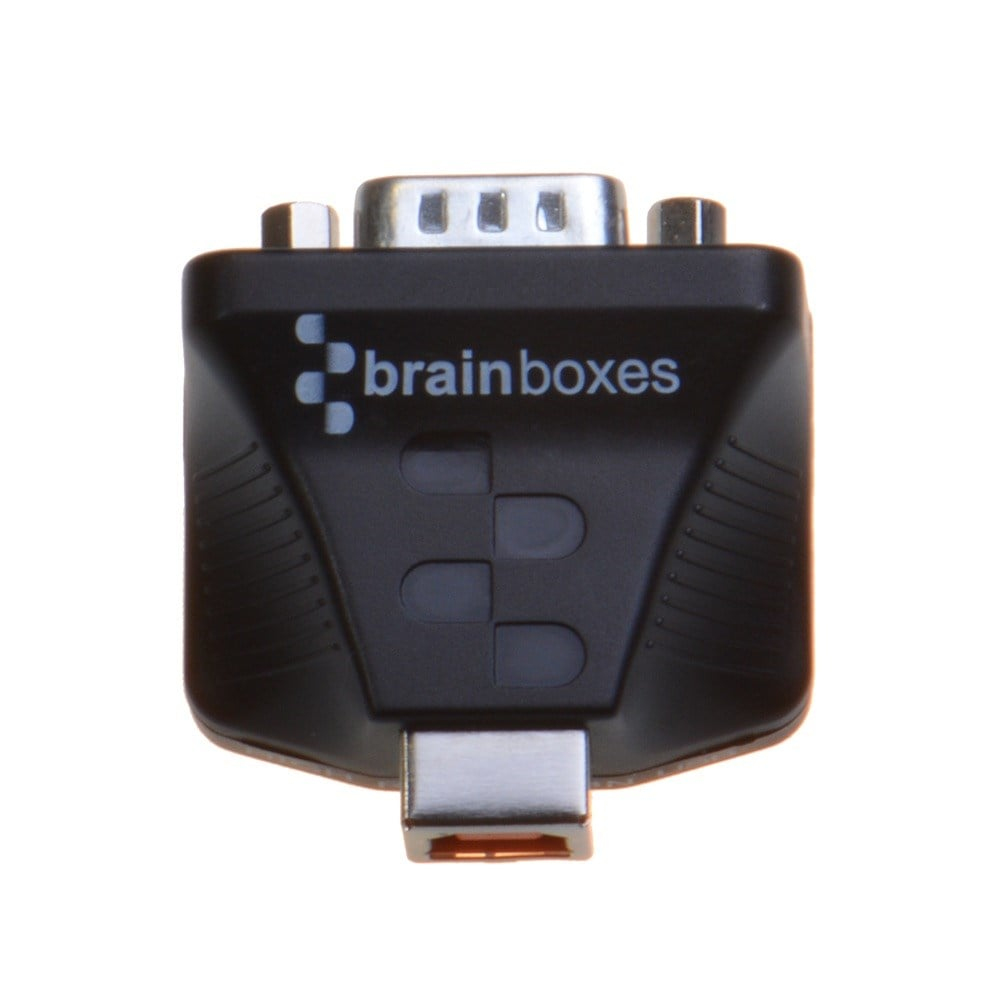

Tough ultra small isolated USB to serial adapter
Suitable for any environment
Tough ultra small isolated USB to serial adapter suitable for any environment. The closest you can get to an integrated serial port. High retention USB connector for an unbreakable connection.Avoid electrical damage to your expensive equipment with isolation. Brainboxes US-159 is fully compliant with IEC 61000-4-2, meaning your equipment is immune to electrostatic discharge up to 8kV of contact discharge or 15kV of air discharge.We provide our own software drivers - eliminating many common problems with USB to Serial - giving you have a reliable, stable, native com port solution.Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008, Windows 7, Windows 8 and Windows 10 with additional drivers for Raspberry Pi, Mac OS X and Linux.
| Ports & interfaces | |
|---|---|
| Connector 2 | USB A |
| Connector 1 | DB9 |
| Cable length | 0.5 m |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Cables included | USB Type-A to USB Type-B |
| Performance | |
| Stop bits | 1, 2 |
| Data bits | 7, 8 |
| Baud rate | 921.6 Kbit/s |
| Compatible operating systems | Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Raspberry Pi Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux |
| Product colour | Black |
| Parity bit | Even, Mark, No, Odd, Space |
| Data transfer rate | 0.48 Gbit/s |
| Output current | 100 mA |
| Output voltage | 5 V |
| Power | |
| Output current | 100 mA |
| Output voltage | 5 V |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), CE, UKCA |
| Weight & dimensions | |
| Width | 41 mm |
| Weight | 24 g |
| Height | 22 mm |
| Depth | 42 mm |
| Packaging content | |
|---|---|
| Cables included | USB Type-A to USB Type-B |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 160 mm |
| Package height | 49 mm |
| Package depth | 135 mm |
| Package weight | 155 g |
| Technical details | |
| Output current | 100 mA |
| Output voltage | 5 V |
| Product colour | Black |
| Cable length | 0.5 m |
| Compliance certificates | Federal Communications Commission (FCC), CE, UKCA |
| Design | |
| Product colour | Black |
| Cable length | 0.5 m |
| System requirements | |
| Compatible operating systems | Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Raspberry Pi Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux |
| Logistics data | |
| Harmonized System (HS) code | 84718 |
| Export Control Classification Number (ECCN) | 4A994 |
