Brainboxes USB 1 Port RS422/485 1MBaud
SKU
US-324
- 1 Port RS-422/485 USB to Serial Adapter
- Data rate from 300 to 921,600 baud
- Drivers for all popular operating systems including Windows 10, 8, 7 and XP
- Works where many other USB to Serial devices do not
- Includes 25cm USB Extender cable
| Host interface | USB |
|---|---|
| SKU | US-324 |
| EAN | 0837324002003 |
| Manufacturer | Brainboxes |
| Availability | Out of Stock |
| PDF URLs |
View PDF |

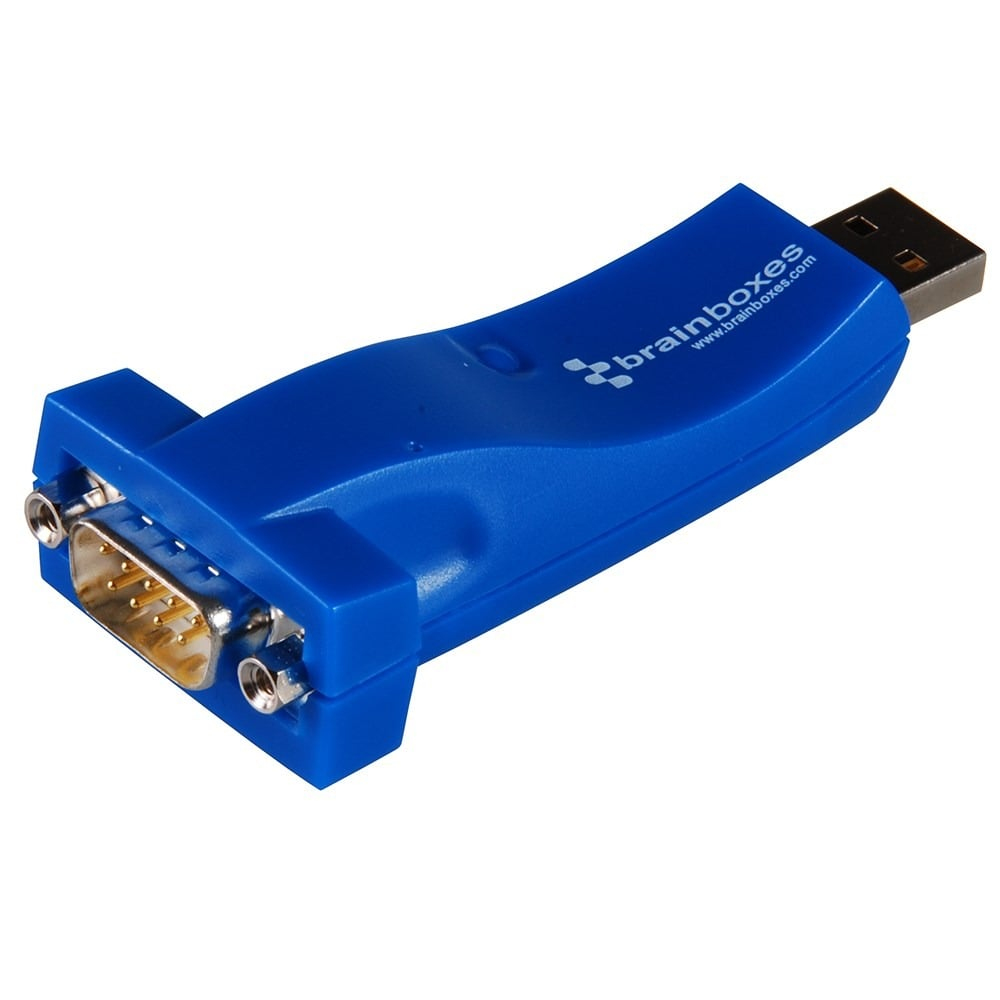

1 Port RS-2422/485 USB to Serial Adapter
Data transfer rates up to 921,600 baud rates

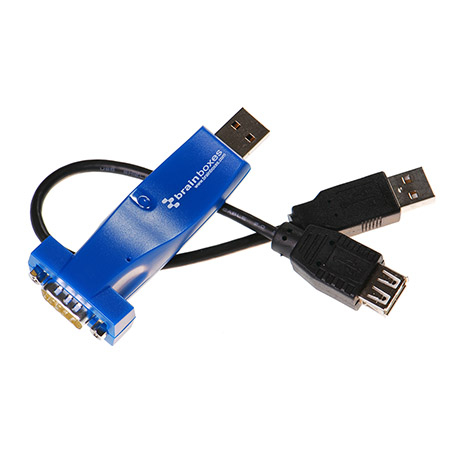

Includes 25m USB extender cable
Works where many other USB to Serial devices do not

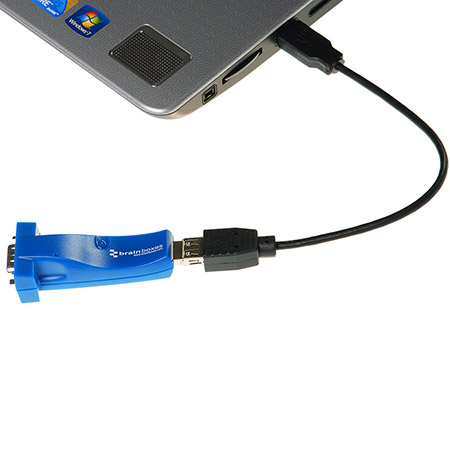

Drivers from all popular operating systems
Including Windows 10, 8, 7 and XP
USB to Serial adapter providing one RS422/485 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC.
Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux. Lifetime warranty and support.
Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux. Lifetime warranty and support.
| Ports & interfaces | |
|---|---|
| Connector(s) | 1x RS422/485 |
| Connector 2 | DB9 |
| Connector 1 | USB A |
| Cable length | 0.25 m |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| USB version | 2.0 |
| Cables included | USB |
| Performance | |
| Stop bits | 1, 2 |
| Data bits | 7, 8 |
| Baud rate | 921.6 Kbit/s |
| Full duplex | Yes |
| Compatible operating systems | Win 7, Vista, XP |
| Product colour | Blue |
| Parity bit | Even, Mark, No, Odd, Space |
| Data transfer rate | 0.48 Gbit/s |
| Certification | CE, ROHS, WEEE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Certificates | |
| Certification | CE, ROHS, WEEE |
| Compliance certificates | Federal Communications Commission (FCC), CE, UKCA |
| Weight & dimensions | |
| Width | 35 mm |
| Weight | 23 g |
| Height | 20 mm |
| Depth | 89 mm |
| Packaging content | |
|---|---|
| Cables included | USB |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 135 mm |
| Package height | 49 mm |
| Package depth | 160 mm |
| Package weight | 133 g |
| Technical details | |
| Full duplex | Yes |
| Product colour | Blue |
| Cable length | 0.25 m |
| Compliance certificates | Federal Communications Commission (FCC), CE, UKCA |
| Design | |
| Product colour | Blue |
| Certification | CE, ROHS, WEEE |
| Cable length | 0.25 m |
| System requirements | |
| Compatible operating systems | Win 7, Vista, XP |
| Logistics data | |
| Harmonized System (HS) code | 84718 |
| Export Control Classification Number (ECCN) | 4A994 |
