Brainboxes USB 4 Port RS422/485 1MBaud
SKU
US-346
- 4 Port RS-422/485 USB to Serial Server
- Data rate from 300 to 921,600 baud
- High Retention USB Socket, IP30 Rated Case
- Drivers for all popular operating systems including Windows 8
- Screw Lock Power Supply (included)
| SKU | US-346 |
|---|---|
| EAN | 0837324002096 |
| Manufacturer | Brainboxes |
| Availability | Out of Stock |
| PDF URLs |
View PDF |

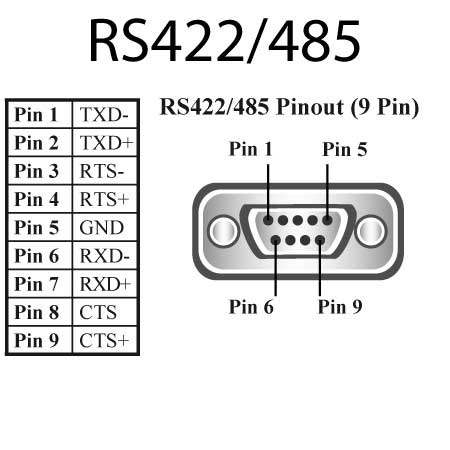

4 Port RS-422/485 USB to Serial Server
Data transfer rates up to 921,600 baud rates

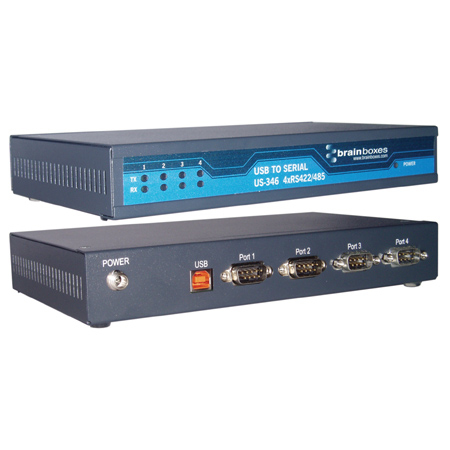

High Retention USB Socket, IP30 Rated Case
Secure connection
USB to Serial server providing four RS422/485 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8 with additional drivers for both Mac OS X and Linux.
| Ports & interfaces | |
|---|---|
| Internal | No |
| Output interface | Serial |
| Serial interface type | RS-422/485 |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 4 |
| Host interface | USB Type-B |
| Technical details | |
| Maximum operating distance | 1200 m |
| Full duplex | Yes |
| Compliance certificates | Federal Communications Commission (FCC), CE, UKCA |
| Performance | |
| Stop bits | 1, 2 |
| Data bits | 7, 8 |
| Baud rate | 921.6 Kbit/s |
| Full duplex | Yes |
| Flow control support | Yes |
| Product colour | Black |
| Export Control Classification Number (ECCN) | 4A994 |
| Certificates | |
| Certification | RoHS EMC CE AEO (C-TPAT) |
| Colour | |
| Product colour | Black |
| Design | |
| Internal | No |
| Product colour | Black |
| Certification | RoHS EMC CE AEO (C-TPAT) |
| LED indicators | Yes |
| Features | |
|---|---|
| Stop bits | 1, 2 |
| Data bits | 7, 8 |
| Baud rate | 921.6 Kbit/s |
| Full duplex | Yes |
| Flow control support | Yes |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | RTS/CTS, DTR/DSR, XON/XOFF |
| Export Control Classification Number (ECCN) | 4A994 |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
| Weight & dimensions | |
| Width | 215 mm |
| Depth | 123 mm |
| Height | 34 mm |
| Weight | 675 g |
| Package width | 300 mm |
| Package depth | 135 mm |
| Package height | 80 mm |
| Package weight | 1.1 kg |
| Packaging data | |
| Package width | 300 mm |
| Package depth | 135 mm |
| Package height | 80 mm |
| Package weight | 1.1 kg |
| Cables included | USB Type-A to USB Type-B |
| Other features | |
| Maximum operating distance | 1200 m |
| Safety | IP-30 |
| Compatible operating systems | Windows XP, Server 2003, Vista, Server 2008, Windows 7 |
| Flow control support | Yes |
| Packaging content | |
| Cables included | USB Type-A to USB Type-B |
