Brainboxes USB-C to 1 Port RS232 Industrial Isolated USB to Serial
SKU
US-759
Login for pricing
Out Of Stock - Contact for availability
USB-C to 1 Port RS232 Industrial Isolated USB to Serial
- 1 Port Isolated RS-232 USB-C to Serial Adapter
- Isolation: Avoid electrical damage to your expensive equipment
- High Retention USB connector with 1m USB-B to USB-C cable
- Works where many other USB to Serial devices do not
- Industrial Specification -40 °C to +80 °C / -40 °F to +176 °F

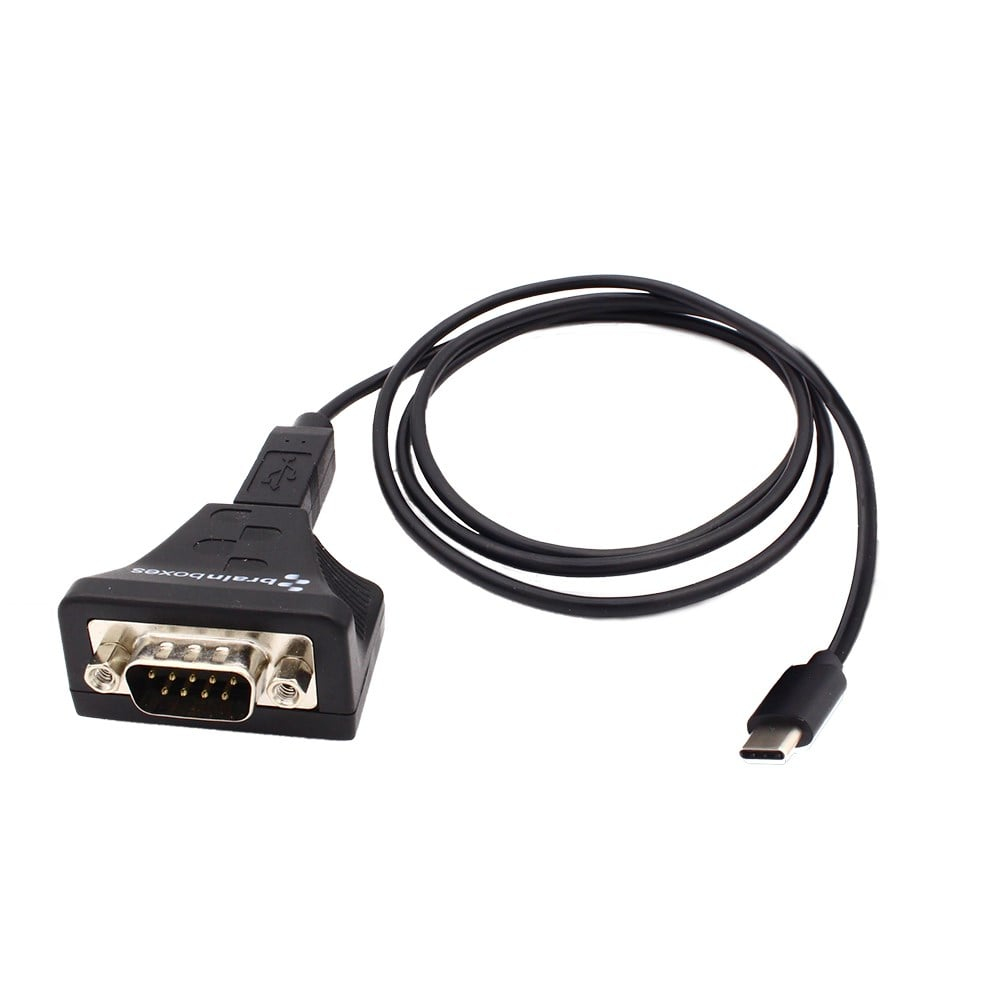

High retention USB connector
With 1m USB-B to USB-C cable

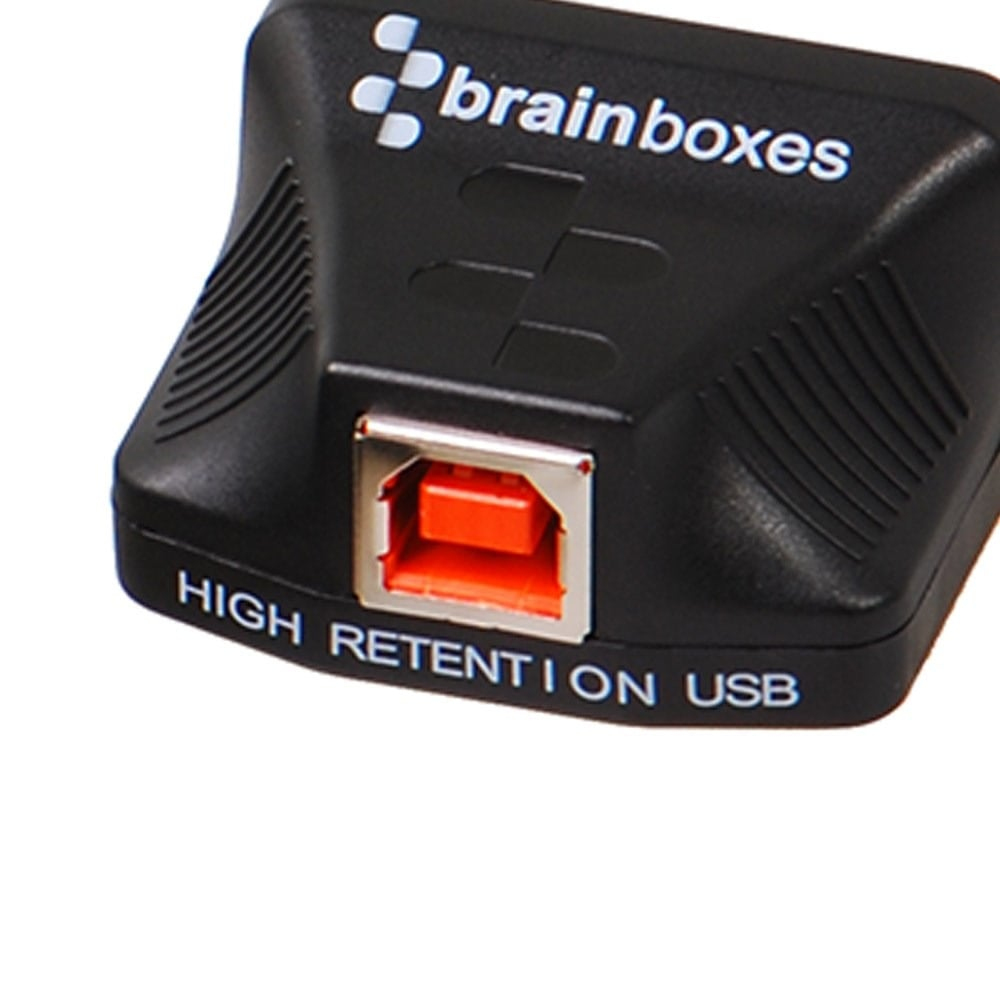

1 port isolated RS-232 USB-C to serial adapter
Includes large 512 byte Tx and Rx and high data throughput

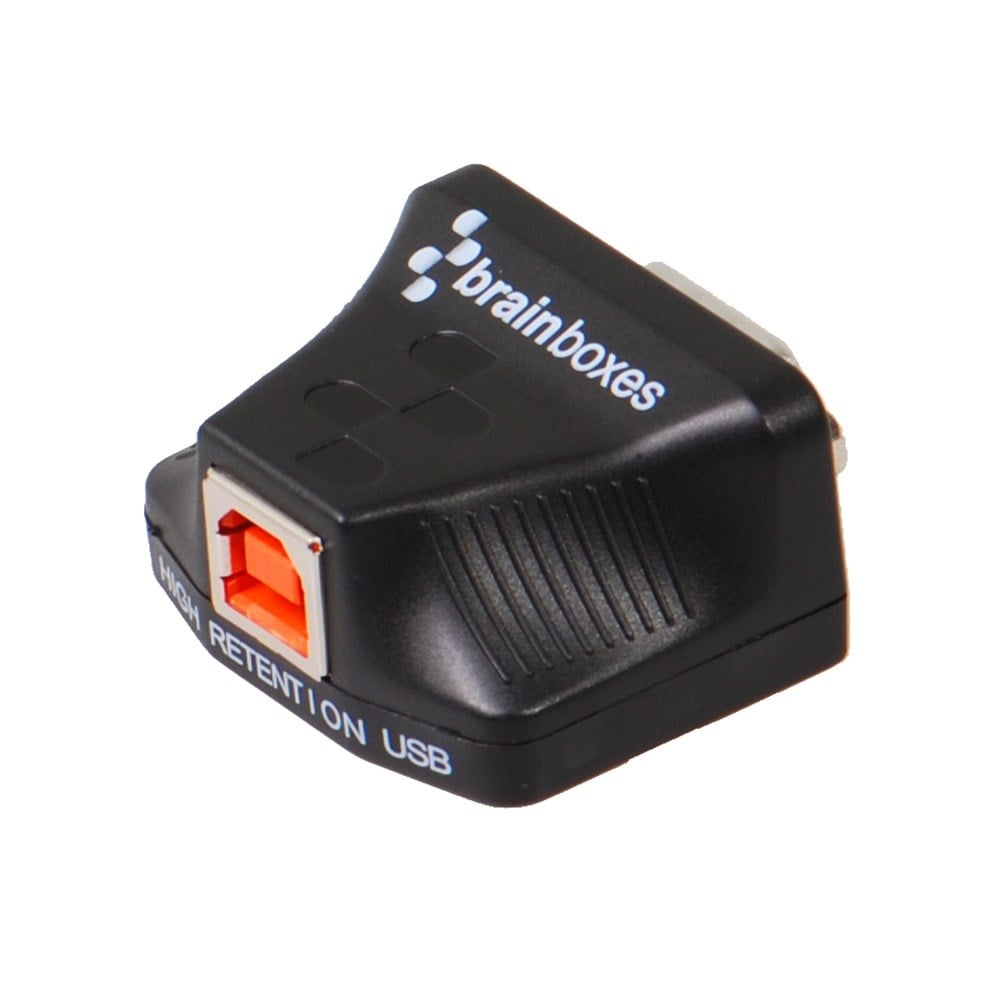

Tough ultra small USB-C to serial adapter
Suitable for any environment
Tough ultra small USB-C to serial adapter suitable for any environment. The closest you can get to an integrated RS422/485 serial COM port. High retention USB connector for an unbreakable connection, comes with 1m USB-B to USB-C cable .Have confidence, this product will match whatever baud rate your equipment needs without data loss. Includes large 512 byte Tx and Rx and high data throughput. Works across the full spectrum of baud rates up to 921,600 including standard and arbitrary values. We provide our own software drivers - eliminating many common problems with USB to Serial - giving you have a reliable, stable, native com port solution.Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 8, Windows 8.1, Windows 10, Windows Server 2016, Windows Server 2019
| Ports & interfaces | |
|---|---|
| Connector 2 | DB9 |
| Connector 1 | USB-C |
| Cable length | 1 m |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| USB version | 2.0 |
| Cables included | USB Type-A to USB Type-B |
| Performance | |
| Stop bits | 1, 2 |
| Flow Control type | DTR/DSR, RTS/CTS, XON/XOFF |
| Data bits | 7, 8 |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 512 B |
| Plug and Play | Yes |
| Compatible operating systems | Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Raspberry Pi Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux |
| Product colour | Black |
| Parity bit | Even, Mark, No, Odd, Space |
| Data transfer rate | 0.48 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), CE, UKCA |
| Weight & dimensions | |
| Width | 38 mm |
| Weight | 24 g |
| Height | 22 mm |
| Depth | 41 mm |
| Packaging content | |
|---|---|
| Cables included | USB Type-A to USB Type-B |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 135 mm |
| Package height | 49 mm |
| Package depth | 160 mm |
| Package weight | 155 g |
| Technical details | |
| Plug and Play | Yes |
| Product colour | Black |
| Cable length | 1 m |
| Compliance certificates | Federal Communications Commission (FCC), CE, UKCA |
| Design | |
| Product colour | Black |
| Cable length | 1 m |
| System requirements | |
| Compatible operating systems | Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Raspberry Pi Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux |
| Logistics data | |
| Harmonized System (HS) code | 84718 |
| Export Control Classification Number (ECCN) | 4A994 |
